For engineers designing fastening systems in medical devices or automotive components, the choice between insert injection molding and post-process heat staking is critical. While heat staking offers flexibility, it often falls short in high-torque applications where rotational failure is a risk. Insert injection molding—the process of encapsulating a metal insert directly within the molten resin—creates a superior mechanical bond. By allowing plastic to flow completely into the knurl roots and undercuts, this method maximizes torque retention, ensuring that threaded inserts for plastic injection molding remain secure even under intense vibrational loads or thermal cycling. This article analyzes the mechanical advantages of encapsulation over thermal insertion.
Achieving Superior Torque Retention Through Insert Molding Mechanics
The fundamental advantage of insert molding lies in the complete encapsulation of the metal component, creating a robust mechanical interlock that post-process methods cannot replicate. Unlike heat staking, which relies on re-melting localized plastic, molding integrates the insert into the part’s structural matrix.
Optimizing Knurl Patterns for Mechanical Interlocking

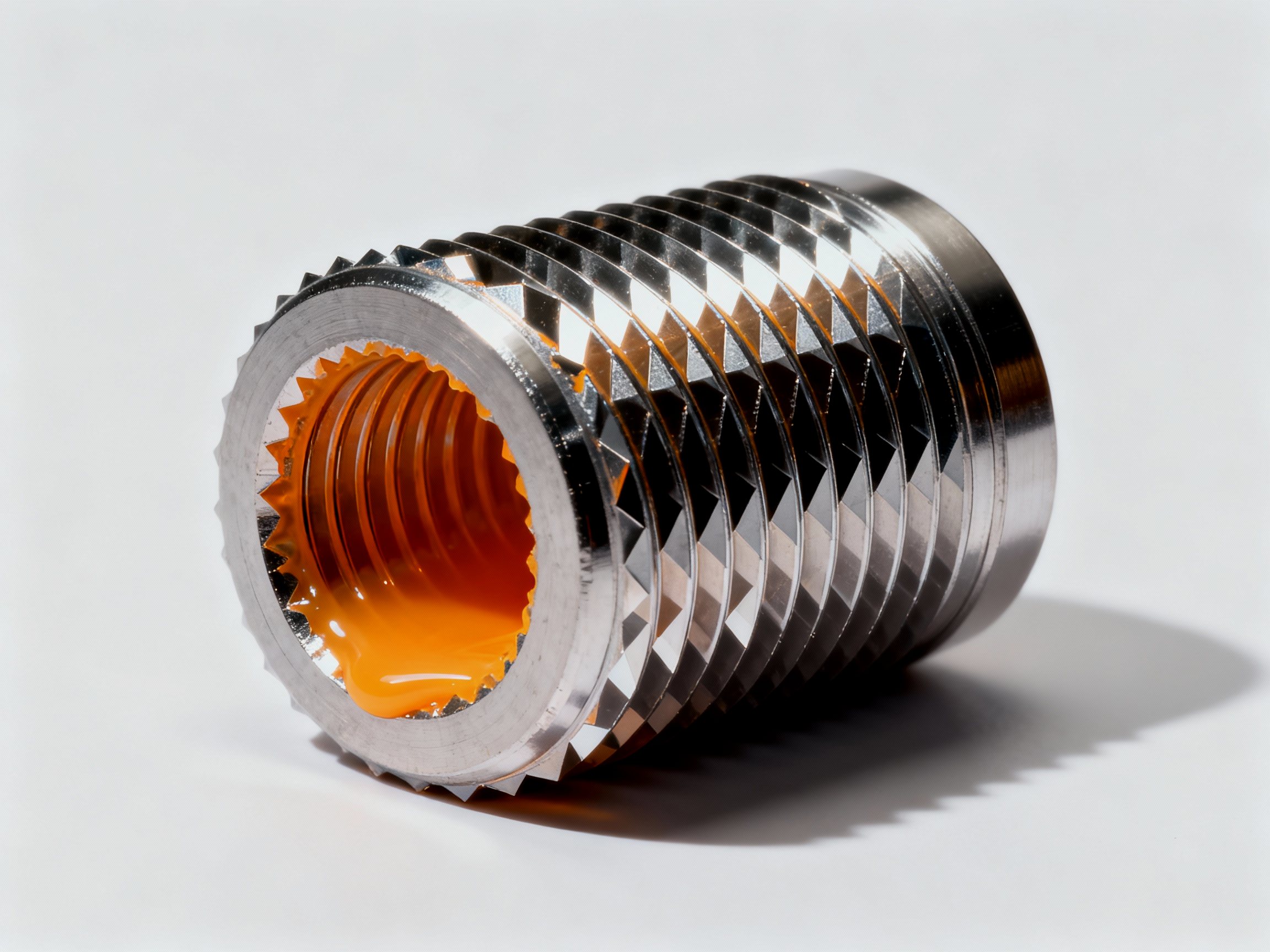

To maximize rotational resistance, the geometry of injection molding threaded inserts must be optimized for resin flow. Standard straight knurls provide limited resistance, functioning primarily to prevent pull-out. In contrast, bidirectional diamond knurls offer superior performance by presenting opposing faces to the torsional force. During the molding cycle, molten plastic flows deep into the roots of these diamond patterns, solidifying to form a rigid, continuous interface. Deep undercuts further enhance this bond, creating a vertical lock that prevents the insert from rising during tightening. This full encapsulation ensures that the torque load is distributed across the entire surface area of the insert rather than just the upper rim.
Torque Strength Comparison: Molding vs. Heat Staking

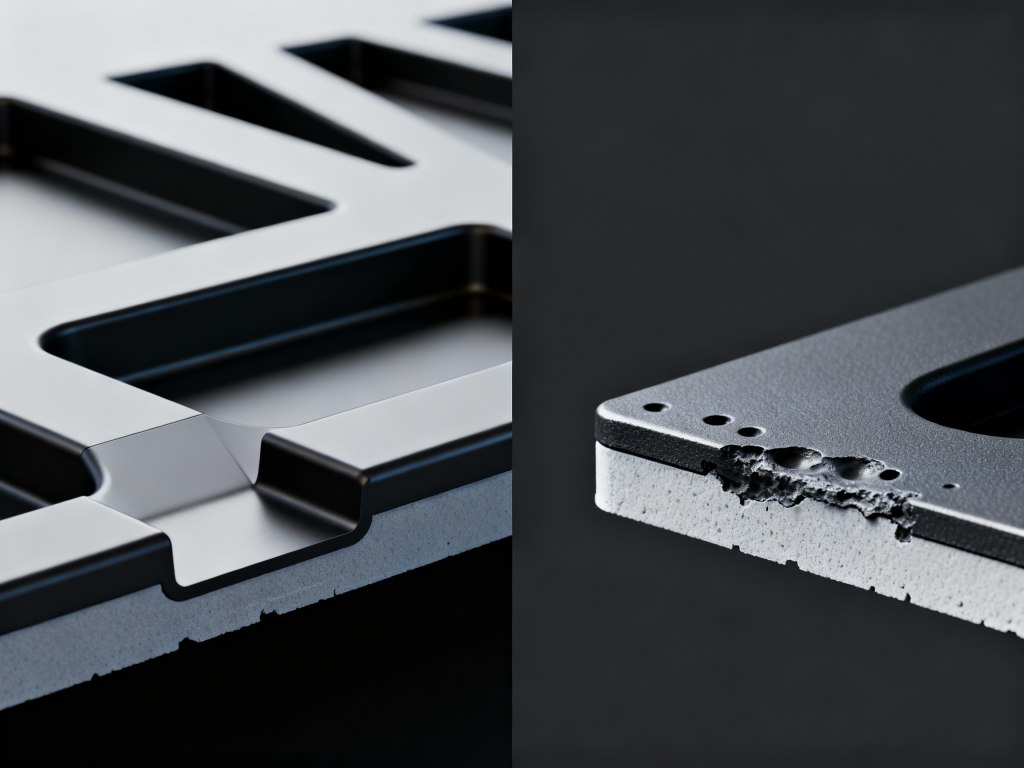

Empirical data consistently demonstrates that encapsulated inserts outperform heat-staked alternatives. Insert molding vs injection molding with secondary installation typically yields a 30% to 50% increase in torque resistance. In heat staking, the plastic only re-solidifies around the knurls after being melted, often leaving micro-voids or stress zones caused by uneven cooling. Conversely, insert molding packs the resin under high pressure, ensuring a void-free structure. This dense, stress-free interface allows the assembly to withstand significantly higher rotational forces without stripping the plastic host.
Critical Design Standards for Threaded Inserts in Plastic Injection Molding
Ensuring long-term fastening reliability requires precise attention to boss geometry and material selection. Even the strongest injection mold inserts can fail if the surrounding plastic structure is inadequate to support the hoop stresses generated during screw installation.
Boss Geometry and Wall Thickness Calculations
To prevent boss cracking, engineers must adhere to specific wall thickness ratios. A widely accepted standard is maintaining a boss wall thickness that is 60% to 80% of the insert’s external diameter. For example, if an insert has a diameter of 6 mm, the surrounding plastic wall should be at least 3.6 mm to 4.8 mm thick. Additionally, sharp corners at the base of the boss must be avoided; incorporating a radius of 0.25 mm to 0.5 mm eliminates stress concentration points where cracks often initiate. Proper design ensures the plastic can absorb the expansion forces caused by the metal insert without mechanical failure.
Material Selection and Torque-Out Benchmarks
Material choice plays a pivotal role in preventing creep-induced failure. Glass-fiber reinforced composites, such as PA66+GF, provide the structural rigidity needed to resist deformation over time. When using brass inserts for plastic injection molding within these robust materials, specific torque-out values act as performance benchmarks.
M3 and M4 Insert Range: These typically sustain torque loads between 2.0 and 5.5 N·m before failure.
M5 and M6 Insert Range: Larger inserts can handle significantly higher loads, ranging from 7.5 to 17.0 N·m.
Adhering to these benchmarks ensures predictable performance in critical assemblies.
