High-quality prismatic battery modules depend on more than the performance of individual cells. Once cells enter module and pack production, handling, positioning, welding, inspection and testing all influence the consistency of the finished product. For battery manufacturers, these processes need to work together within a controlled production environment rather than operate as isolated stations.
This is why manufacturers evaluating prismatic battery pack assembly line suppliers should look beyond individual machines. A suitable automation partner needs to demonstrate capabilities across material handling, assembly, process control and quality inspection, while also understanding how these functions interact in a complete production line.
What Does Cell Handling Require?
Prismatic cells pass through several operations before becoming part of a battery module. Depending on the production design, the process may include cell feeding, barcode scanning, OCV(Open Circuit Voltage) testing, adhesive application, inspection and pre-stacking.
The movement between these operations needs to be controlled because positioning errors can affect subsequent assembly. FHS’s lithium battery applications include automated cell feeding, barcode scanning, OCV testing, gluing, inspection and module assembly. Its solutions also combine flexible transport with automated production equipment for battery manufacturing.
For manufacturers, transport should therefore be considered part of the production process. Consistent movement can help reduce unnecessary repositioning and maintain the sequence required by downstream stations.
Why Is Precise Positioning Important?
The assembly of prismatic cells into a module involves multiple components and process steps. Cell pre-stacking, end plate loading, side and middle plate installation, cooling plate assembly and adhesive application all require controlled positioning.

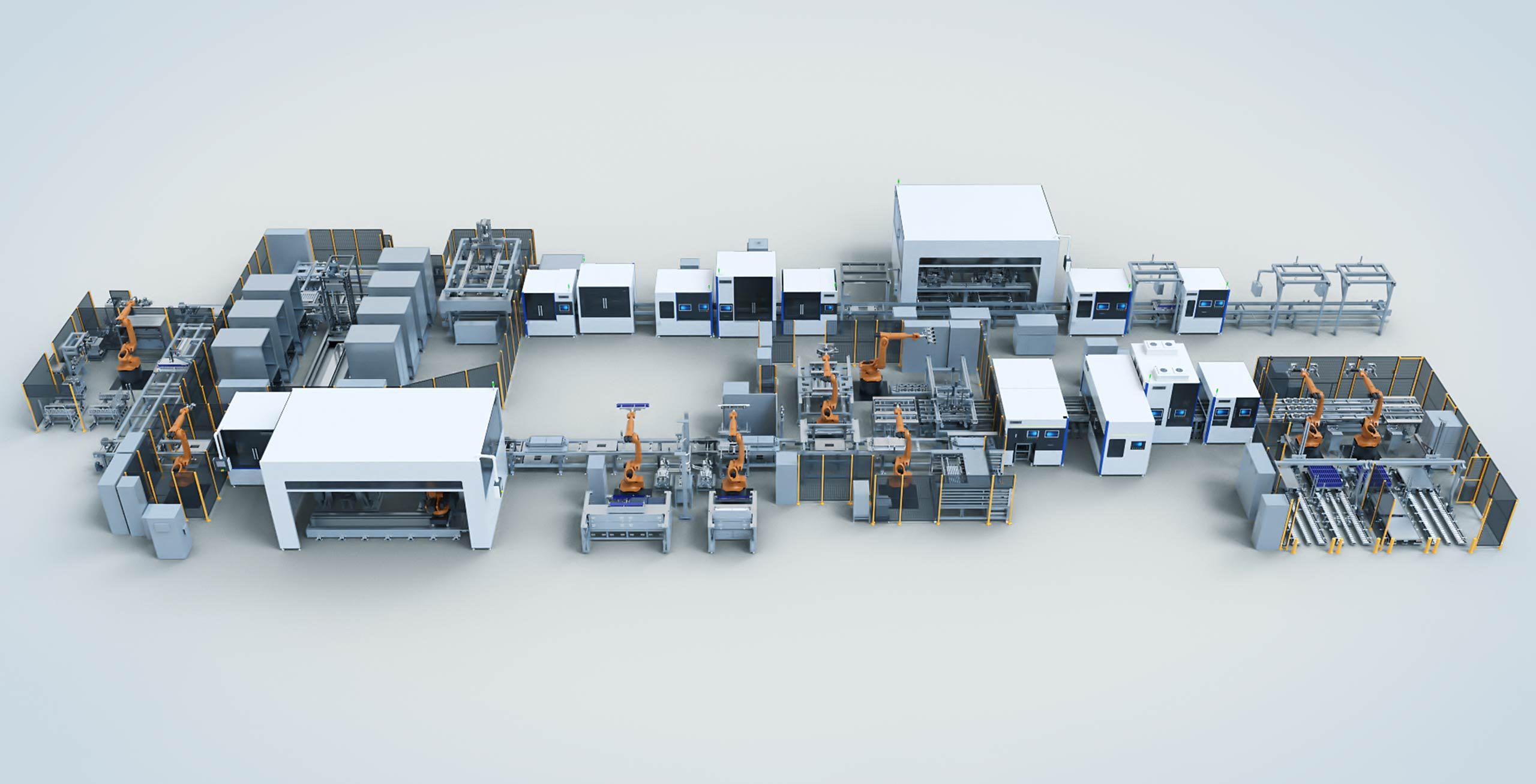

FHS’s published prismatic battery module line includes cell feeding, barcode scanning, OCV testing, cell pre-stacking, end plate loading, side and middle plate loading, cooling plate installation, gluing, welding and post-weld inspection. The complete line is designed around a coordinated process rather than separate standalone machines.
This integrated approach matters because an error introduced at an early station can affect later operations. Automation therefore needs to maintain suitable positioning and process sequencing throughout the line.
Which Technologies Support Process Quality?
Welding is another important capability in prismatic battery module production. Busbars and other electrical connections need controlled joining processes, while the finished welds may require inspection before the module moves to subsequent stages.
FHS lists busbar welding, seam welding and prismatic battery welding among its core technologies. Its automation capabilities also include vision inspection, laser processing, assembly and testing technologies.
Inspection should not be limited to the final stage. Process-level checks can help identify deviations earlier, allowing manufacturers to determine whether an issue originates from positioning, welding, adhesive application or another operation.
How Does Flexible Transport Support Battery Production?
As battery production becomes more varied, the transport system also needs to accommodate changes in workpiece size, process sequence and station requirements. A fixed conveyor may be suitable for a simple line, but more complex production can require independent movement and precise positioning.
FHS’s FTS-MT supports a single-mover load range of 5–40 kg, a maximum speed of 5 m/s and repetitive positioning accuracy of ±0.01 mm. Its design also supports modular workstations and quick replacement of movers and tooling for different product types.
Such capabilities can be relevant to battery production where different processes require different stopping positions or movement patterns. The actual configuration should still be selected according to cell dimensions, payload, takt time and workstation requirements.
What Should Manufacturers Expect From Line Integration?
When comparing prismatic battery pack assembly line suppliers, manufacturers should examine the complete process route rather than focus on one machine’s specifications.
FHS’s published prismatic battery module line has a production capacity of 20 PPM and a whole-line takt of 30 JPH. The documented process covers cell loading, DMC scanning and testing, cell stacking, module pre-stacking, plate assembly and gluing, welding, post-weld inspection, EOL testing, on-off testing, weighing, and unloading.
These figures describe a specific line configuration and should not be treated as universal targets. Actual output depends on product design, process parameters, equipment configuration and customer requirements.
How Can Manufacturers Prepare for Product Changes?
Battery products can evolve during the service life of a production line. New cell dimensions, module structures or process requirements may require equipment changes. A flexible manufacturing architecture can make such adjustments easier to manage.
FHS describes its automation solutions as covering new energy manufacturing, with capabilities in assembly, control, visual inspection, laser processing and flexible transport. Its FTS-MT is also designed around modular workstations and product changes.
For manufacturers, this means supplier evaluation should include future production requirements rather than only the initial product specification.
Building a More Controlled Production Process
Consistent prismatic battery module and pack production requires coordinated handling, positioning, joining, and inspection. These capabilities become more important as manufacturers move from individual equipment purchases toward integrated module and pack production.
FHS provides automation solutions for new energy manufacturing, including battery production lines, flexible transport, assembly and inspection technologies.
For manufacturers selecting automation partners, the key consideration is whether the supplier can connect individual processes into a production system that matches the required product, quality controls, capacity and future development needs.
